Car Ramps
|
If you’re a
handy woodworker, you probably work on cars too. Nice to have ramps to drive up on to get
under a car with a little working room.

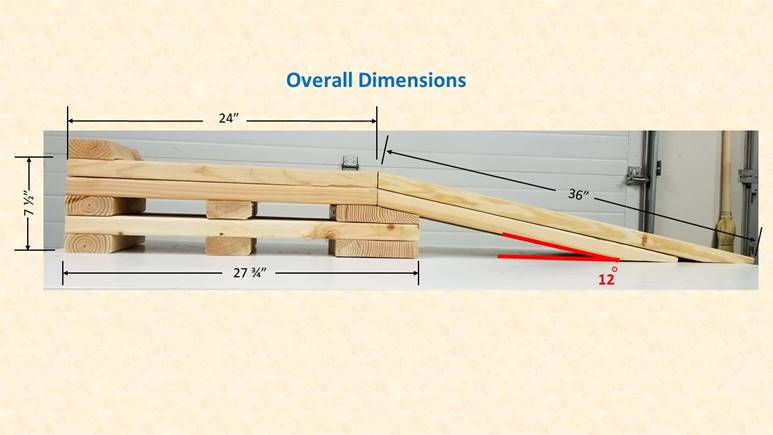

I built some wood ramps. Here

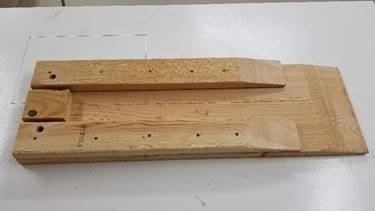

are some pics and a video. I built the ramp
out of one 2x12 reinforced with a couple of 2x4s.
The top of the
block is also a 2x12. I used a box
cribbing structure out of 2x4s for the block.
|
Assembly of the
block is from the bottom up with the 2x12 on top so it
can be easily replaced if needed.

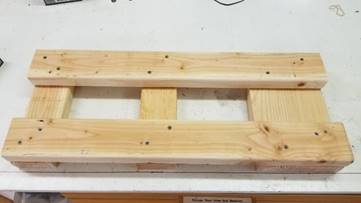

First two
layers

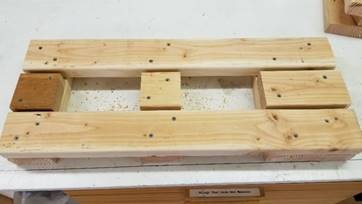

Add blocks in the middle

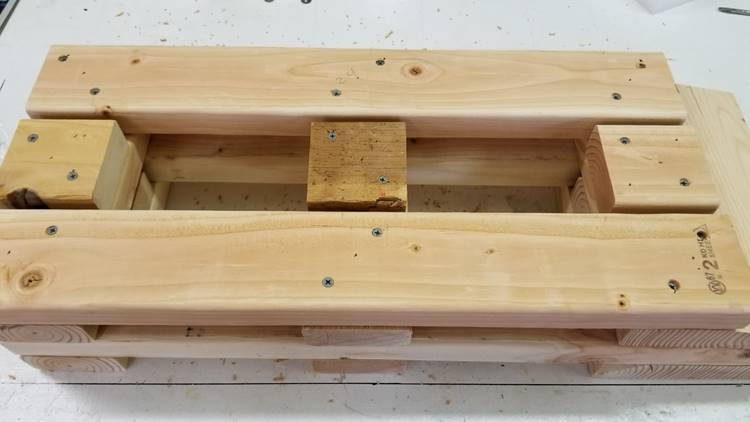

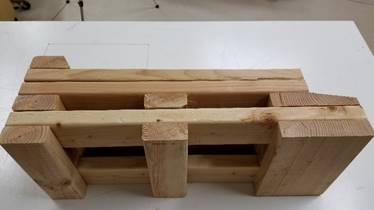

Third and fourth
layers

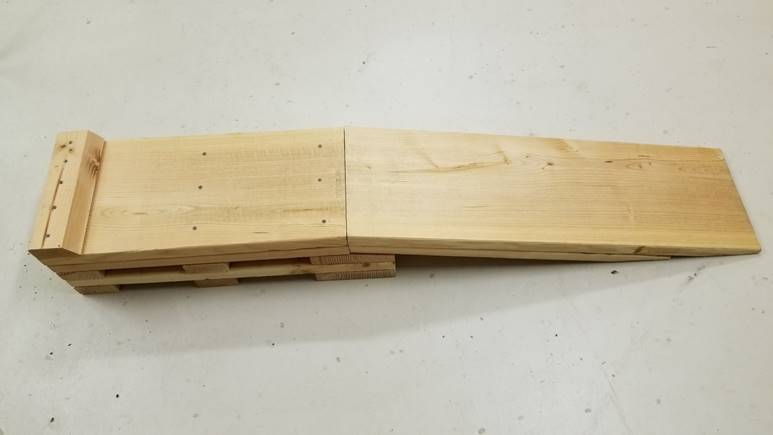

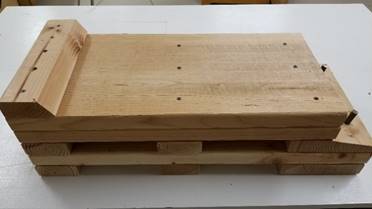

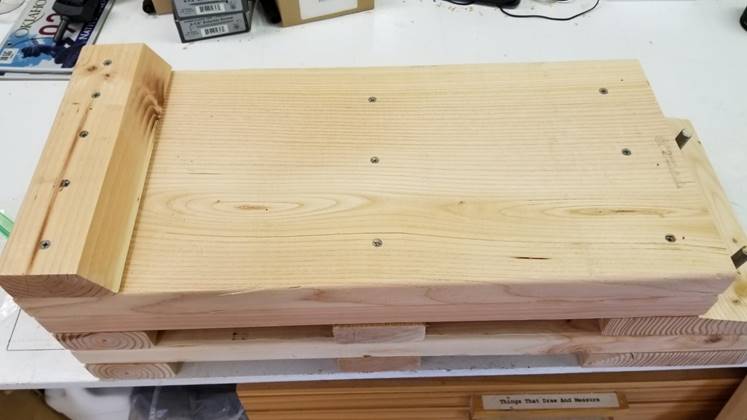

Finally, the top
2x12 and stop block.

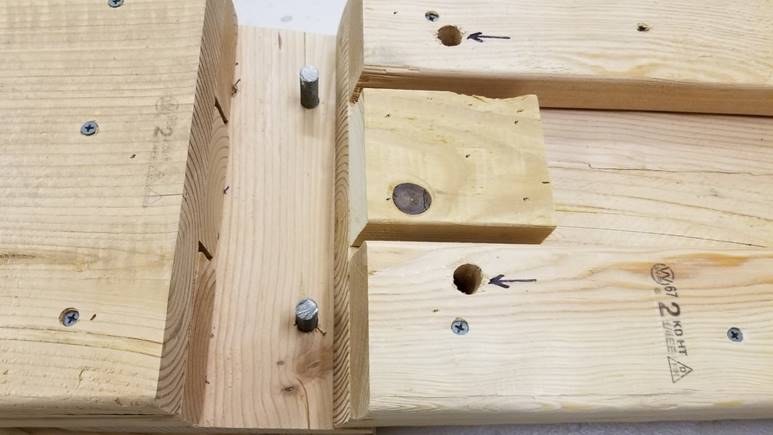

The ramp has 1/2”
holes which engage the 1/2" all-threads that are driven into the block.

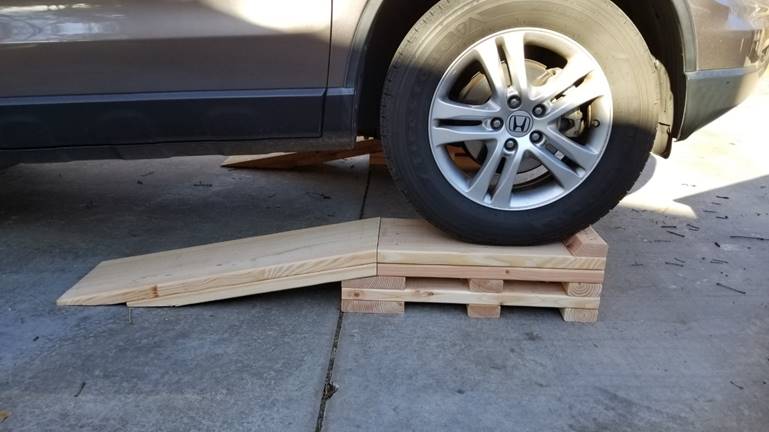

In use!
Here is a video:
